How True 15Hz and High Peak Power Make IRIS Bluetoning a Clinic Favorite?

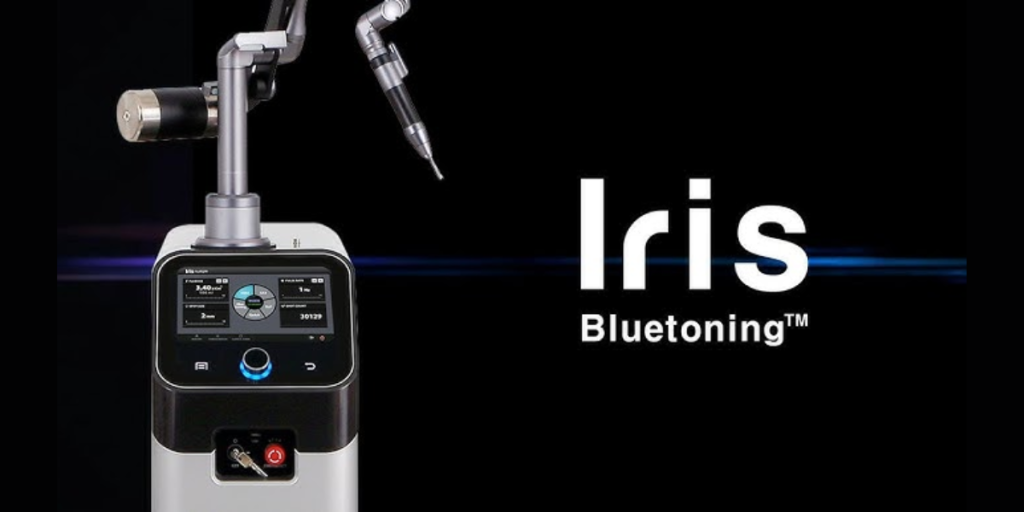

IRIS Bluetoning

Built for clinics that demand speed, consistency, and refined outcomes, IRIS Bluetoning pairs high peak power with stable, repeatable pulses so toning sessions feel smooth, finish faster, and look more even—day after day.

What do you get from IRIS?

– Perfect Toning Treatments

Expect balanced, repeatable passes that visibly refine uneven tone and surface dullness while keeping skin comfort front and center. The system’s controlled pulse delivery helps you achieve clear, uniform results across cheeks, forehead, and around the nose, where consistency matters most.

– High Peak Power

Short, crisp pulses deliver strong photoacoustic impact with minimal thermal spillover, helping you target pigment and textural unevenness efficiently while maintaining patient comfort. High peak power means you can work quickly without riding the edge of tolerance.

– Max Energy 1600/2000mJ

Headroom matters in challenging areas. With Max Energy 1600/2000mJ available, you gain the flexibility to choose larger spot sizes or tougher passes without starving the beam. This translates into fewer re-passes, tighter timing, and the confidence to stay within safe parameters while still moving the needle on results.

– Before Service

From pre-install planning and room readiness to staff onboarding and first‑day protocol mapping, the Before Service program ensures your team is confident before the first appointment. Clear checklists, quick-start guides, and live run-throughs help you hit the ground running.

– Remote Assistants

Real-time remote support keeps you moving: parameter guidance for different skin types, quick troubleshooting, performance diagnostics, and over‑the‑air updates. If something feels off mid‑day, Remote Assistants shorten the gap between question and solution—minimizing downtime.

– True 15Hz

True 15Hz isn’t just a spec; it’s sustained speed at treatment energy. Consistent 15 pulses per second allows smoother, more continuous strokes, better overlap control, and shorter sessions without sacrificing fluence. In a busy schedule, that stability keeps your day on track.

IRIS Bluetoning — Technical Specifications

Key performance

• Laser: Q-switched Nd:YAG
• Beam profile: Super Hive Flat mode (top-hat)
• Wavelengths: 1064 nm, 532 nm
• Max pulsed energy: 1064 nm up to 1600/2000 mJ; 532 nm up to 500 mJ; SLP 2200–3000 mJ
• Pulse widths: 5–10 ns (Q-switched), 300 μs (SLP)
• Repetition rate:
  • Q-switched 1064/532: 1–10 Hz
  • SLP (1064): 2–7 mm = 10–15 Hz; 8–9 mm = 10–12 Hz; 10 mm = 10 Hz (True 15 Hz at smaller spot sizes)
• Spot sizes: 2–10 mm (auto-sensing zoom collimated handpiece)

Mode-by-mode matrix

Mode	Wavelength (nm)	Pulse width	Pulsed energy (mJ)	Spot size / Repetition rate
1064	1064	5–10 ns	1600 / 2000	2–10 mm / 1–10 Hz
532	532	5–10 ns	500	2–10 mm / 1–10 Hz
SLP	1064	300 μs	2200–3000	2–7 mm: 10–15 Hz; 8–9 mm: 10–12 Hz; 10 mm: 10 Hz
PTP Bluetoning	1064	5–10 ns	1600 / 2000	2–10 mm / up to 10 Hz

lris Bluetoning System features

• Display: 10.2-inch wide panel + jog-dial smart panel
• Beam profile: Super Hive Flat mode (top-hat)
• Auto management: Ethernet, Wi‑Fi, WCDMA (remote connectivity)
• User memory: 8 user-programmable presets (save/load parameters)
• Optional handpieces: 7 mm single collimated; 7×7 fractional (1064 nm, 532 nm)
• Spot size hardware: Auto-sensing zoom collimated handpiece (2–10 mm)
• Acoustic/noise: 50 dB (patented cooling system)
• Lamp life: 10,000,000 shots or more
• Electrical: 220–230 VAC, 15 A, 50/60 Hz
• Dimensions/weight: 295(W) × 740(L) × 973(H) mm; 70 kg

Why clinics choose IRIS Bluetoning

– Consistency you can feel: Stable output means fewer do‑overs and more predictable photos at follow‑up.

– Throughput without the stress: True 15Hz at working energies helps you finish on time while maintaining coverage quality.

– Patient‑friendly experience: High peak power with controlled delivery supports comfort and confidence.

– Support that sticks: Before Service plus Remote Assistants creates a safety net for your team from day one.

Who it’s for

– Practices offering complexion toning, brightening, and gentle textural refinement with minimal downtime.

– Teams that value reliable speed during peak hours and need strong remote support between on‑site service visits.

Good to know

– For use by trained, licensed professionals. Always follow local regulations and device protocols, perform test spots as appropriate, and tailor settings to skin type and history.

– Outcomes vary with skin type, parameters, and technique; build treatment plans accordingly.

If you’d like, share your current workflow and treatment mix. I can suggest parameter strategies and onboarding steps to get the most from IRIS Bluetoning in your setting.
